Gas Spring Type 10-23

Technical Specifications and Instructions

  • The gas spring meintenance-free and ready to install
  • Final position damping: approx. 10mm
  • On order: longer end position damping, no damping
  • Fill medium: Nitrogen-oil
  • Outward thrust force F1 at 20°C: 80 to 1200 N
  • Special request piston rod ø 10mm and pressure pipe ø 28mm

Special connections, fittings and attatchment parts available on request.

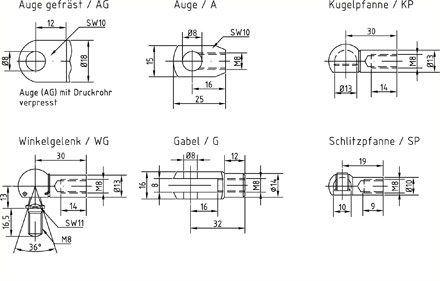

Gasfeder Typ 10-23 Anschlüsse Typ 10-23
