Gas Spring Type 8-19

Technical Specifications and Instructions

The gas spring meintenance-free and ready to install
Final position damping: approx. 10mm
On order: longer end position damping, no damping
Fill medium: Nitrogen-oil
Outward thrust force F1 at 20°C: 50 to 700 N
Special request piston rod ø 8mm and pressure pipe ø 23 mm

Gas Spring Type 8-19

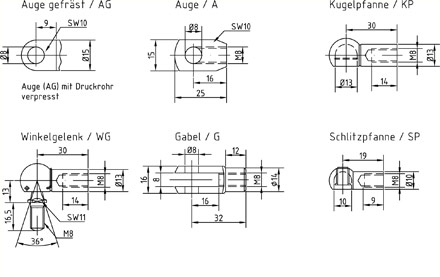

Connection Type 8-19

Special connections, fittings and attatchment parts available on request.
